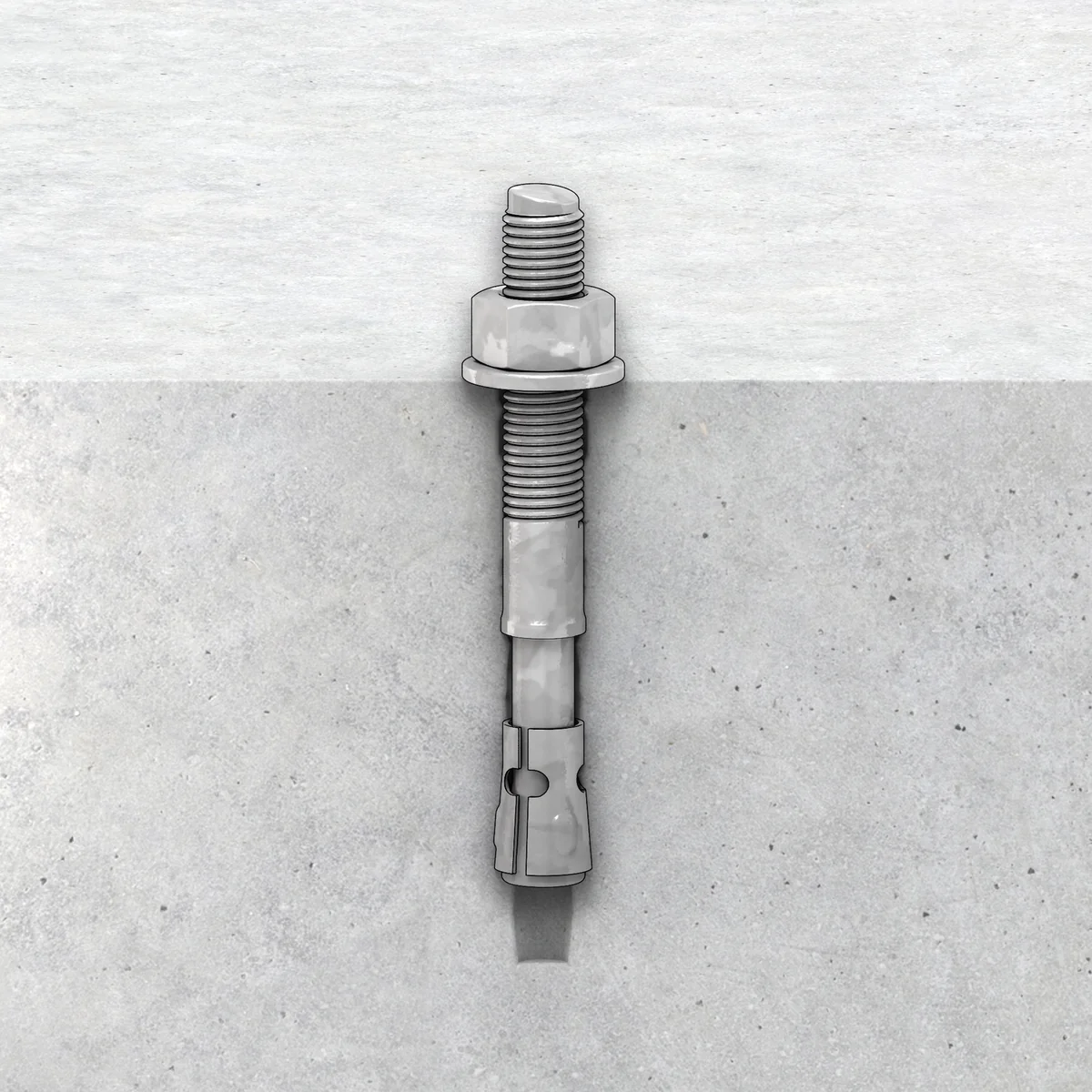

Ramset m12 x 140mm Galvanised Trubolt Stud Anchor is a heavy-duty, torque-controlled expansion anchor designed for permanent anchoring into concrete.

The Ramset m12 x 140mm Galvanised Trubolt Stud Anchor features a true-to-size design that simplifies drill bit selection by matching the anchor diameter to the required hole diameter. Its cold-forged construction provides enhanced strength and reliability, ensuring maximum expansion of the sleeve and effective pull-down on fixtures. The anti-rotation expansion sleeve grips the sides of the hole, preventing any rotation during installation. With over fifty years of experience, Ramset™ is a trusted name in the building and construction industry, known for its innovative drilling, anchoring, and fixing products.

Features

• Anchor diameter matches the required hole diameter for maximum shear capacity.
• Cold forged construction for superior strength and reliability.
• Designed for maximum sleeve expansion and effective fixture pull-down.
• Anti-rotation expansion sleeve prevents anchor rotation during installation.
• Heavy-duty, torque-controlled expansion anchor suitable for concrete.

Specifications

Dimensions (W x H x D)	12mm x 140mm x 2mm
Material	Hot Dip Galvanised, Carbon Steel
Colour	Grey
Model Number	T12140GH
Fastener Size	M12 x 140mm
Drill Size	12mm

The Ramset m12 x 140mm Galvanised Trubolt Stud Anchor is designed for reliable concrete anchoring.
